Harken

Harken D Shackles

€26.95
Tax included. Shipping calculated at checkout.

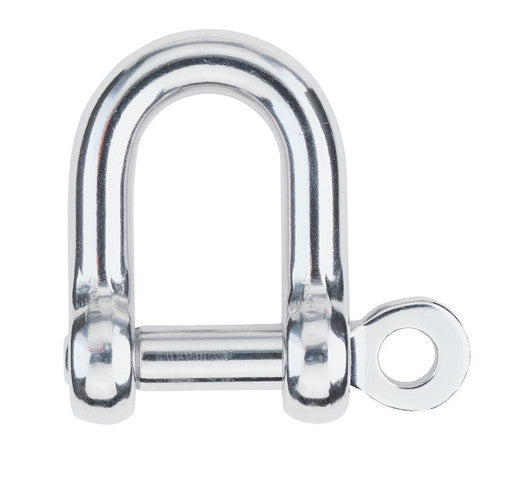

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.

"D" Dee shackles are the most common type of shackle. They are best suited for aligned attachment points.

High-Resistance (HR) shackles are forged in 17-4PH stainless steel to handle high loads. They have an "HR" imprint for easy identification.

6mm Specs:
Shackle pin Ø (mm)6 mm
Weight (g)25 g
A (mm)19 mm
B (mm)14 mm
Maximum working load (kg)750 kg
Breaking load (kg)1500 kg

8mm Specs :
Shackle pin Ø (mm)8 mm
Weight (g)59 g
A (mm)25 mm
B (mm)17 mm
Maximum working load (kg)1380 kg
Breaking load (kg)2760 kg

10mm Specs:
Shackle pin Ø (mm)10 mm
Weight (g)120 g
A (mm)32 mm
B (mm)20 mm
Maximum working load (kg)2210 kg
Breaking load (kg)4420 kg
6mm HR Specs
Weight (g) 22.5 g
Weight (oz) 0.8 oz
Maximum working load (kg) 1260 kg
Maximum working load (lb) 2770 lb
Breaking load (lb) 5540 lb
Breaking load (kg) 2510 kg
A (mm) 19 mm
A (in) 3/4 in
B (mm) 14 mm
B (in) 9/16 in
Shackle pin Ø (mm) 6 mm
Shackle pin Ø (in) 1/4 in

8mm HR Specs:
Shackle pin Ø (mm)8 mm
Weight (g)56.7 g
A (mm)25 mm
B (mm)16 mm
Maximum working load (kg)2330 kg
Breaking load (kg)4650 kg

10mm HR Specs:
Shackle pin Ø (mm)10 mm
Weight (g)111 g
A (mm)32 mm
B (mm)20 mm
Maximum working load (kg)3720 kg
Breaking load (kg)7450 kg
