Barton High Load Low Friction Ring / Eyes (Various Sizes)
High Load Low Friction Eye/Ring

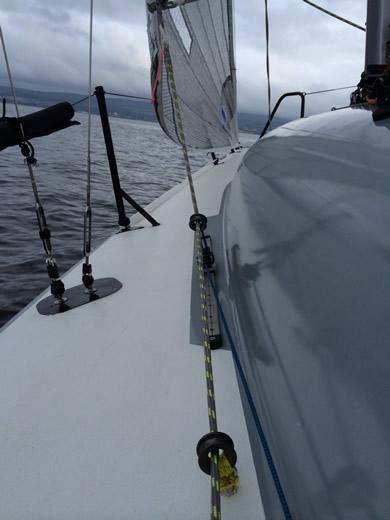

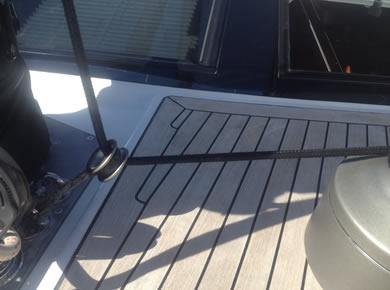

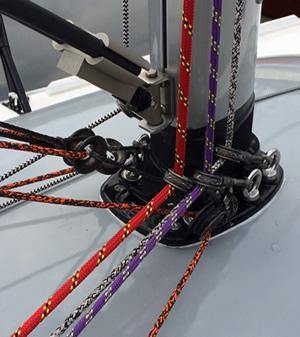

Available in 6 sizes. Manufactured in marine grade aluminium and finished in our unique hard ‘Spectro’ grey anodising. These lightweight high load eyes are suitable for a variety of uses on board, from lazy jacks, barber haulers, mast base tidies to stanchion lead eyes. The smallest size can be attached using a 3mm line with a bullseye diameter of 6mm. The largest size can be attached using a 16mm line with a bullseye diameter of 28mm.
High Load Low Friction Eye/Ring |

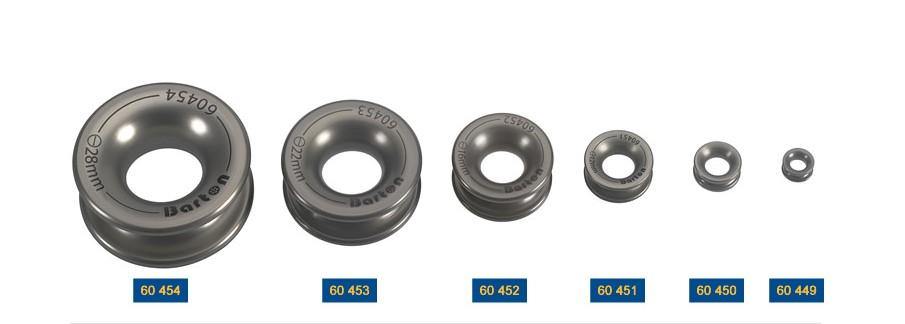

Part No | External Ø mm |
Internal Rope Ø mm |
Bore Dia Ø mm |
Length mm |
SWL Kg |
Weight g |
|
High Load Low Friction Eye/Ring - 12mm
|
60 449 | 12 | 3 | 6 | - | 300 | 0.8 |
|
High Load Low Friction Eye/Ring - 18mm
|
60 450 | 18 | 4 | 9 | - | 550 | 3.0 |
|
High Load Low Friction Eye/Ring - 26mm
|
60 451 | 26 | 6 | 12 | - | 800 | 5.0 |
|
High Load Low Friction Eye/Ring - 38mm
|
60 452 | 38 | 10 | 16 | - | 1800 | 24.0 |
|
High Load Low Friction Eye/Ring - 52mm
|
60 453 | 52 | 12 | 22 | - | 3300 | 52.0 |
|
High Load Low Friction Eye/Ring - 65mm
|
60 454 | 65 | 16 | 28 | - | 4500 | 104.0 |
