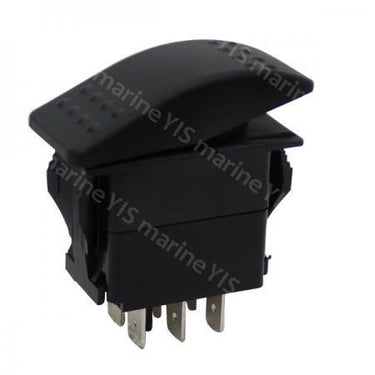

YIS Marine C-7 IP67 Marine Rocker Switches

€7.45 Sold out
Tax included. Shipping calculated at checkout.

Water-proof switches specially designed for marine or outdoor applications

As an upgraded version of the C-6 switches, the C-7 switches withstand more severe environment and are IP67 rated. C-7 switches are also equipped more durable and power efficient LED lamps and with dual voltage rating (DC 12V/24V). Furthermore, the C-7 switches come with a complete set of accessories including inter-changable actuators, replacing tool, mounting panels and label stickers.

FEATURES

  • Sealed rocker switch to withstand severe outdoor environments
  • Interchangeable actuators with various options
  • Available in various switch function, illuminating and otherconfigurations
  • LED illuminated (DC12V/ 24V dual voltage)
  • PC Terminals (0.250” Quick Connect Terminals)
  • IP67: Water proof even under temporary water immersion
  • Customized switches (rating, LED colors, actuator color...etc.) possible
IP67 Water proof even under temporary water immersion

SPECIFICATION

  • Rating (AC) | 125V 16A / 250V 10A
  • Rating (DC) | 12V 20A / 24V 10A
  • Contact R. | 50mΩ Max.
  • Insulation R. | DC 500V 100MΩ Min.
  • Dielectric Strength | AC 1500V 1minute
  • Electrical Life | 20,000~50,000 switch function dependent

PRODUCT CODING

Product ID Type Switch Function
C-7231R SPST ON-OFF
C-7234R SPST (ON) - OFF
(ON): Momentary
Title: Single Illuminated ON-OFF
Title: Single Illuminated ON-OFF
