AL-5866-76-BK

€188.95
/
Tax included. Shipping calculated at checkout.

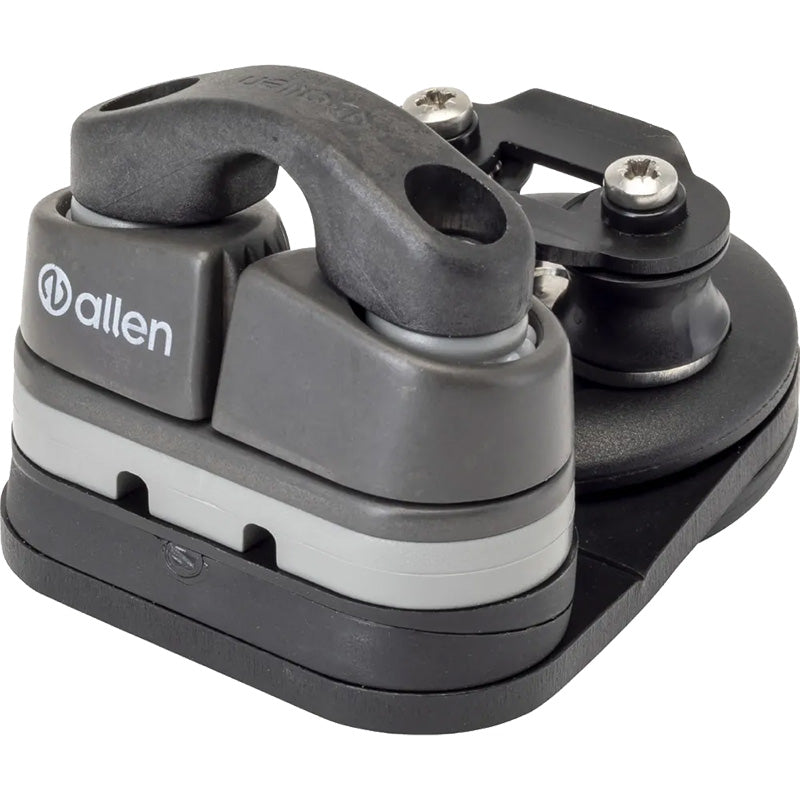

High-Performance Swivel Cleat – Medium

Main features:
  • 360-degree swivel arm running on ball bearings.
  • Comes with multiple wedges which can be adjusted to customise the cam cleat angle.
  • Separate 360-degree swivel for the sheaved fairlead.
  • Small aluminium ball bearing cam cleat.
  • The high-performance swivel cleat is designed to meet the high-performance demands of the 29er and 49er Skiffs.

This cleat features our innovative 360-degree ball-bearing base, allowing the arm to rotate frictionlessly so you can secure and release lines effortlessly from any angle.

The new base design also eliminates any wobble on the cleat arm, ensuring the cleat remains exactly at the same height time after time. Resulting in a more precise and effortless cleating action. Vital for those big bare aways at high speeds!

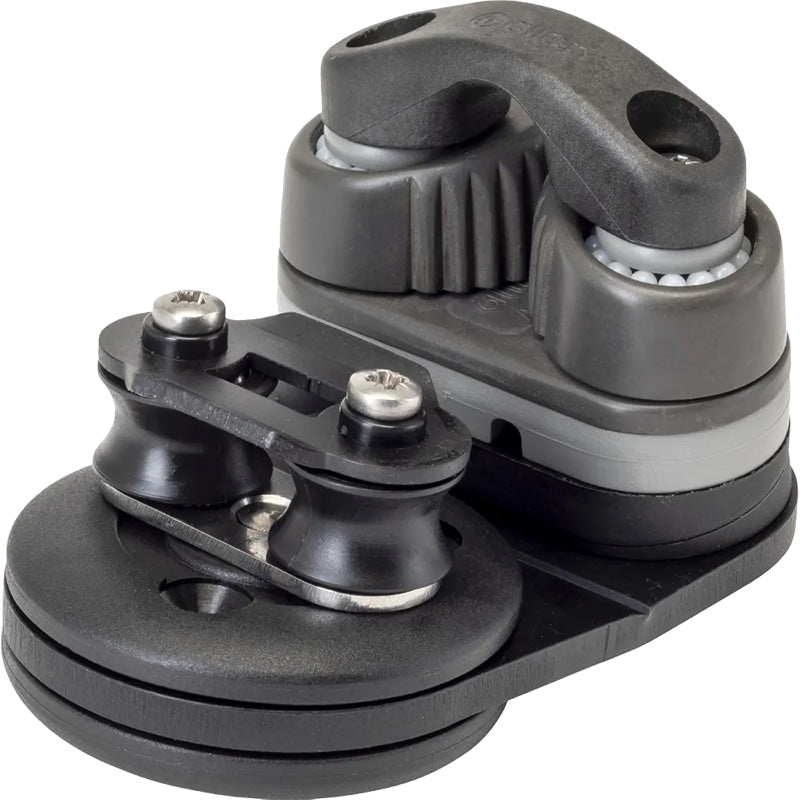

Two dynamic bearing sheaves are mounted onto a separate swivel base which can swivel separately to the cam cleat arm. This allows the line to be fed perfectly into the cam cleat and ensures minimal friction and a consistent feel when trimming the jib.

The swivel cleat is supplied with two pre-installed wedges set at a flat angle. These wedges can be easily removed, rotated, or stacked to provide five different height and angle configurations. This allows for versatile adjustment to match your desired sheeting angle. Please note: Some configurations may require cutting the bolts to size or using longer bolts.

Its compact and ergonomic design makes it easy to install and operate, perfect for any size of sailboat.
Base Cleat Col Line Size mm

Heigh

mm

 Hole Centre
mm

Length

mm

Weight

gm
Ball bearing medium aluminium ball bearing Black   4-10     68 28 x 3   92.5       250

Please see below for a list of supplier sizing guides. If you have any issues, please don't hesitate to get in touch. We're here to help.
