Allen Angled Swivel Cleat

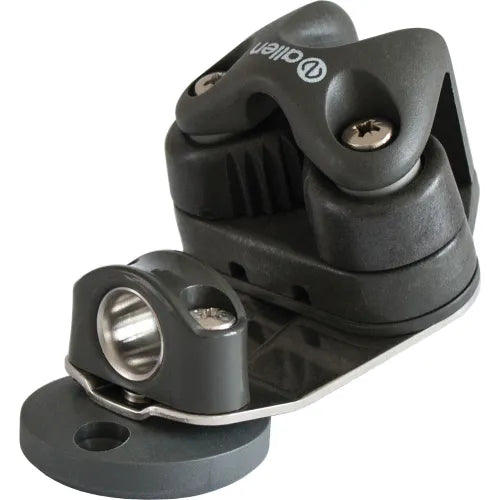

Angled Swivel Cleat – Medium

A lightweight and reliable swivel cleat system designed for smooth sheeting and easy cleating. The stainless-steel swivel base is angled upwards for improved ergonomics, making it ideal for jib sheets, vangs, cunninghams, and other control lines.

This model features the Allenite Medium Cam Cleat – a durable, low-weight alternative to aluminium, moulded from a proprietary material for excellent heat dissipation and wear resistance. Perfect for low-load applications.

Paired with the A4152 Bullseye Fairlead with stainless-steel inner, it provides reduced friction and long-lasting performance.

Features:

• Lightweight Allenite Medium Cam Cleat

• Angled stainless-steel swivel base

• A4152 Bullseye Fairlead with stainless inner (13 mm)

• Smooth, reliable sheeting for multiple applications

The new base design also eliminates any wobble on the cleat arm, ensuring the cleat remains exactly at the same height time after time. Resulting in a more precise and effortless cleating action. Vital for those big bare aways at high speeds!

Two dynamic bearing sheaves are mounted onto a separate swivel base which can swivel separately to the cam cleat arm. This allows the line to be fed perfectly into the cam cleat and ensures minimal friction and a consistent feel when trimming the jib.

The swivel cleat is supplied with two pre-installed wedges set at a flat angle. These wedges can be easily removed, rotated, or stacked to provide five different height and angle configurations. This allows for versatile adjustment to match your desired sheeting angle. Please note: Some configurations may require cutting the bolts to size or using longer bolts.

Its compact and ergonomic design makes it easy to install and operate, perfect for any size of sailboat.

SKU	Title	Maximum Line Diameter mm	Height mm	Fixing Hole Centres mm	Fixing Hole Diameter mm	Cam Cleat	Length mm	Weight g
A4466	Angled Swivel Cleat – Medium	4 - 10	72	3 x 27	5	A.676	200	137
