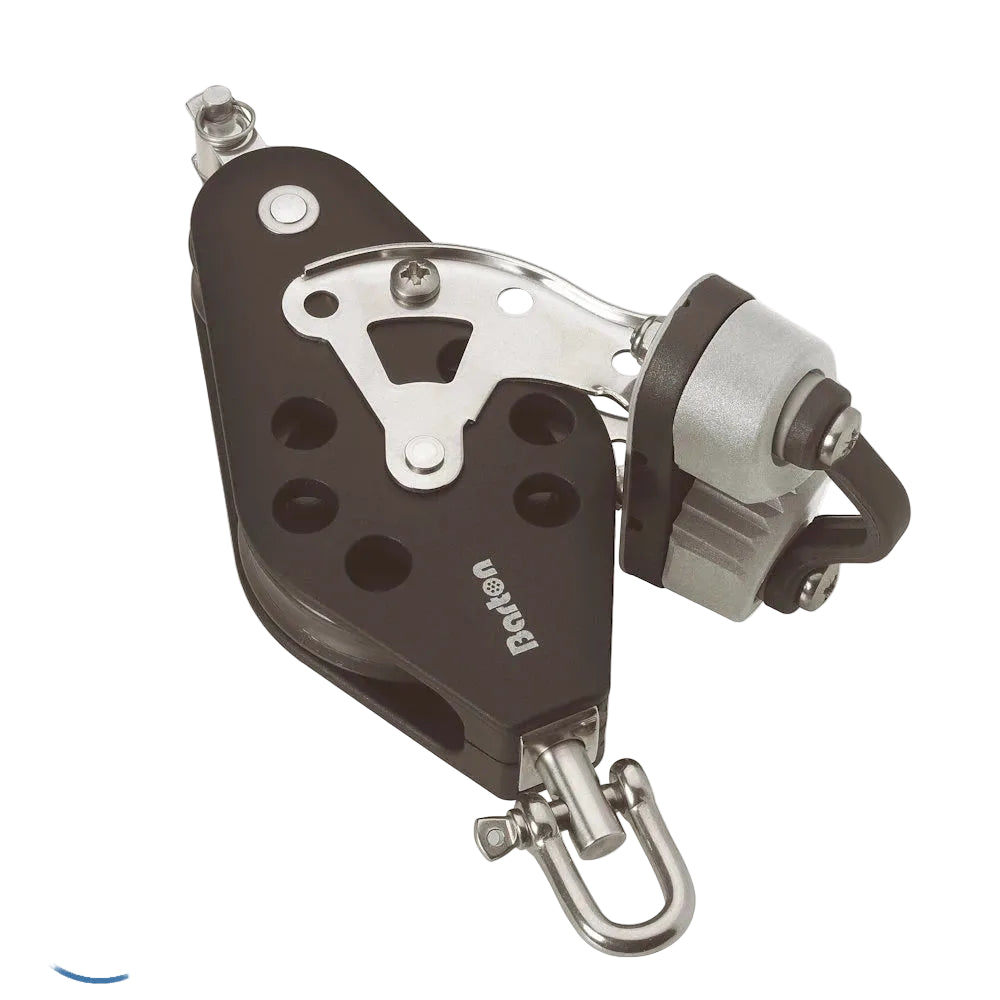

Barton Size 2 30/45mm Ball Bearing Sheave Fiddle Swivel Becket & Plastic Cam
The Barton Size 2 Ball Bearing Block has a 35mm (1 3/8") sheave. This block range size provides high performance and load values in a variety of assemblies & configurations. The range has an internal stainless steel frame and precision components. Also available in plain bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.
Suitable for up to 8mm (3/8") rope.
The 35mm sheave Size 2 block range provides high performance and load values in a variety of assemblies. The range has an internal stainless steel frame and precision components with plain or ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.
| Weight | 162 g |
|---|---|
| Dimensions | 145 × 75 × 51 mm |
| Size | |
| Block Type |
Swivel + Becket + Cam |
| No. of Sheaves |
Single |
| Bearing Type |
Ball Bearing |
| Sheave Size |
35mm x 11mm (1 3/8" x 15/32") |
| Max rope diameter |
8mm (5/16") |
| SWL |
370kg (815lbs) |
| Break load |
740kg (1630lbs) |
| Max rolling load (ball bearing blocks) |
260kg (573lbs) |
| Brand |
Barton |
