Harken

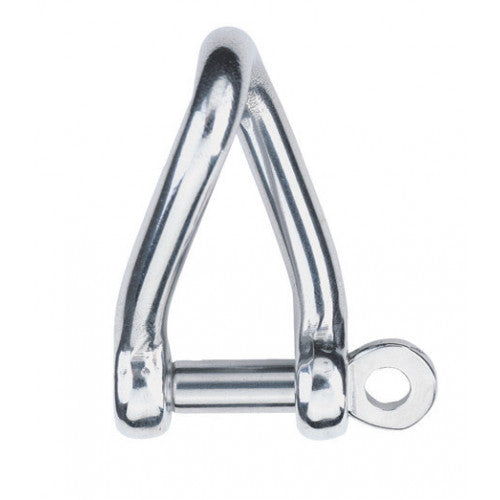

Harken Twist Shackles

€11.95
Tax included. Shipping calculated at checkout.

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.

Twist shackles are forged with a 90-degree twist so the two attachment points can be perpendicular without torquing.


5mm Specs:
Shackle pin Ø (mm)8 mm
Weight (g)22 g
A (mm)37 mm
B (mm)10 mm
Maximum working load (kg)540 kg
Breaking load (kg)1080 kg

6mm Specs:
Shackle pin Ø (mm)6 mm
Weight (g)32g
A (mm)29 mm
B (mm)12 mm
Maximum working load (kg)750 kg
Breaking load (kg)1500 kg
8mm Specs:
Shackle pin Ø (mm)8 mm
Weight (g)52g
A (mm)41 mm
B (mm)17 mm
Maximum working load (kg)1380 kg
Breaking load (kg)2760 kg
10mm Specs:
Shackle pin Ø (mm)10 mm
Weight (g)140.5 g
A (mm)48 mm
B (mm)19 mm
Maximum working load (kg)2210 kg
Breaking load (kg)4420 kg
