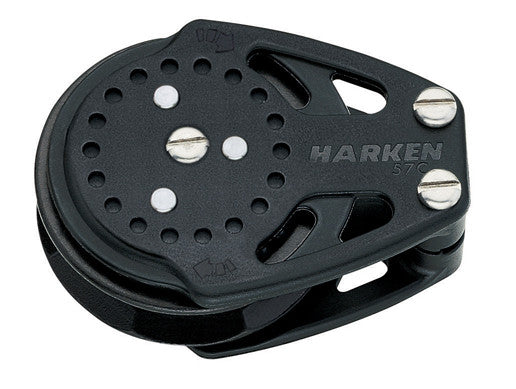

Harken 57mm Carbo Ratchamatic Cheek Block 2633
The Carbo Ratchamatic® is a load-sensing ratchet block that rolls freely in both directions under low loads and automatically engages the ratchet as loads increase. Shifting between ratchet and light-air modes is seamless.
Sheave Ø (mm)57 mm
Length (mm)83 mm
Weight (g)89 g
Maximum line Ø (mm)10 mm
Fasteners (mm)M4 mm
Maximum working load (kg)227 kg
Breaking load (kg)907 kg
Holding power w/180 degree wrap 50 lb (23 kg) 10:1
FootnoteIncludes fasteners and mounting pad.
