Harken 57mm Carbo Fiddle Ratchet w/150cam

€240.00 Sold out
Tax included. Shipping calculated at checkout.

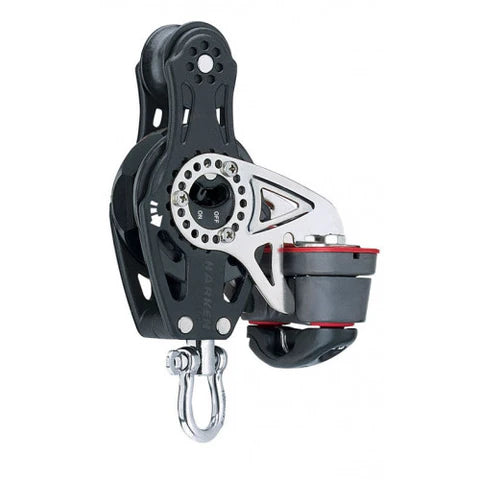

57 mm Fiddle Ratchet Carbo Air® Block — Swivel, Cam Cleat

Carbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing

Sheave Ø (mm) 57 mm
Sheave Ø (in) 2 1/4 in
Length (mm) 118mm
Length (in) 4 5/8 in
Weight (g) 294g
Weight (oz) 10.4 oz
Maximum line Ø (mm) 10 mm
Maximum line Ø (in) 3/8 in
Maximum working load (kg) 359kg
Maximum working load (lb) 792 lb
Breaking load (lb)  2380lb
Breaking load (kg) 1080 kg
Footnote Maximum working loads and breaking loads for blocks based on cam strengths.
Shackle pin Ø (mm) 5 mm
Shackle pin Ø (in) 3/16 in
Holding power 10:1
