Harken

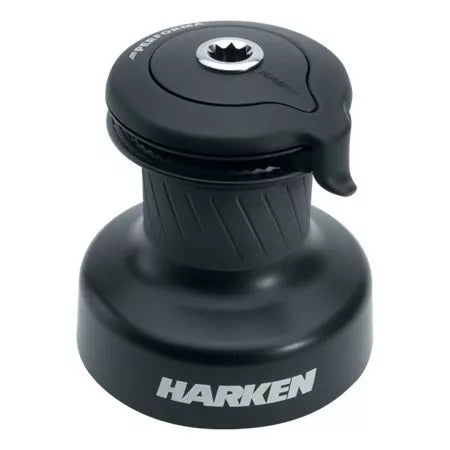

Harken Performa 2 Speed Winch 40.2STP Self-Tailing

€1,295.00 €1,100.00 Sale Sold out
Tax included. Shipping calculated at checkout.

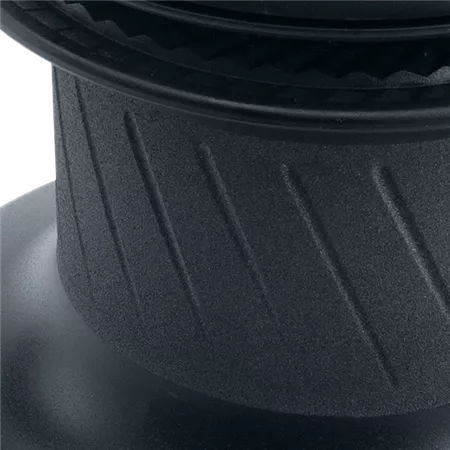

All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.

Part No. 40.2STP

Maximum line Ø (mm) 12 mm

Maximum line Ø (in) 1/2 in

Configuration Self-tailing

Speed 2

Power ratio - 1 13.50

Power ratio - 2 39.90

 Specifications

Weight (kg) 3.8 kg
Weight (lb) 8.4 lb
Maximum line Ø (mm) 12 mm
Maximum line Ø (in) 1/2 in
Fasteners (mm) 6 SH mm
Fasteners (in) 1/4 SH in
Fastener circle (mm) 123 mm
Fastener circle (in) 4 7/8 in
Height (mm) 175 mm
Height (in) 6 7/8 in
Configuration Self-tailing
Speed 2
Drum Ø (mm) 80 mm
Drum Ø (in) 3 1/8 in
Base Ø (mm) 157 mm
Base Ø (in) 6 3/16 in
Line entry height (mm) 82 mm
Line entry height (in) 3 1/4 in
Minimum line Ø (mm) 8 mm
Minimum line Ø (in) 5/16 in
Number of fasteners 5
Gear ratio - 1 2.13
Gear ratio - 2 6.28
Power ratio - 1 13.50
Power ratio - 2 39.90
