Lewmar

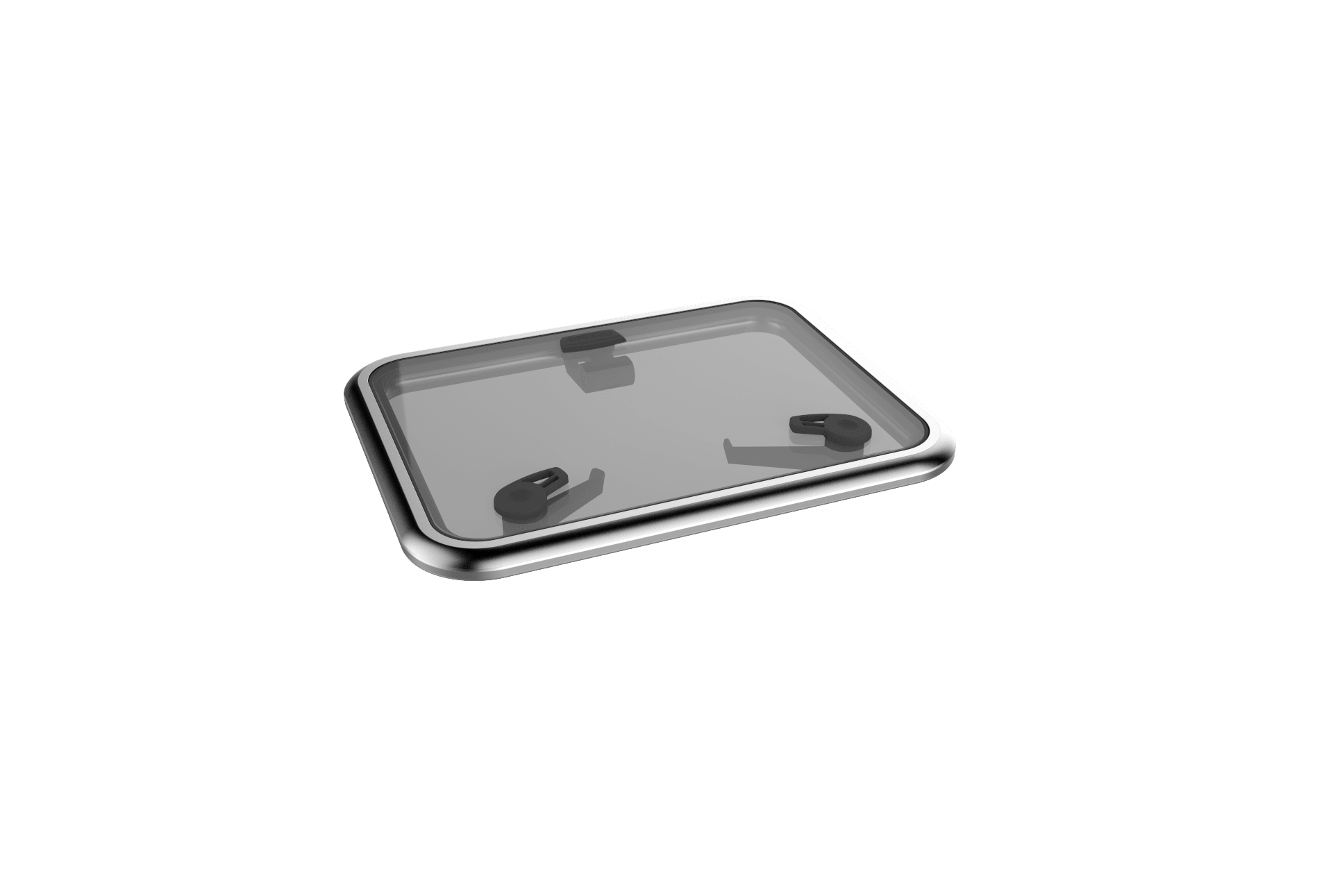

Lewmar Medium Profile Hatch
Ideal as a foredeck hatch on larger offshore yachts, the Medium Profile has thicker acrylic and deeper frame sections for greater strength and durability. It features Lewmar’s unique sealing system, allowing for easy acrylic replacement. All while retaining the smooth, modern lines of the Low Profile Hatch
■ Outside handles allow the hatch to be opened from on deck if it is not locked
■ Friction levers hold the lid open in any position up to 95°
■ Anodised aluminium frame for corrosion resistance
■ Curved upper frame profile for strength as well as modern styling
■ Full range of spare parts available
Specifications:
MP54
| Lower Frame (mm) | Acrylic Colour | Hatch Weight (kg) | Acrylic Window Thickness (mm) |
|---|---|---|---|
| 15 | Smoke Grey | 6.5 | 12 |
| Length X (mm) | Width Y (mm) | Height Z (mm) | Radii R (mm) | Cut-Out Length X1 (mm) | Cut-Out Width Y1 (mm) | Cut-Out Radii R1 (mm) |
|---|---|---|---|---|---|---|
| 463 | 578 | 32 | 72.5 | 392 | 507 | 42.5 |
