Lewmar

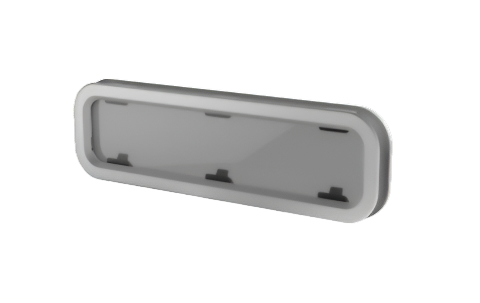

Lewmar Size 4 Standard Portlight
Tax included.
Shipping calculated at checkout.
A perfect match for any hatch in the Lewmar range, the Standard Portlight is stylish, competitively priced and easy to both use and install.
- Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame
- Can be installed with sealant or closed cell PVC tape
- White ABS Plastic Trim
- Supplied complete with flyscreen (except sizes 4L and 4R)
- Full range of spare parts available
Specifications:
| Version | Acrylic Colour | Trim Colour | Hatch Weight(kg) | Acrylic Window Thickness(mm) |
|---|---|---|---|---|
| Opening | Smoke Grey | White | 2.4 | 8 |
| Overall Width X(mm) | Overall Length Y (mm) | Overall Height Z (mm) | Overall Radii R(mm) | Cut-Out Width X1 (mm) | Cut-Out Length Y1 (mm) | Cut-Out Radii R1 (mm) |
|---|---|---|---|---|---|---|
| 191 | 646 | 4 | 62 | 171 | 627 | 52 |
