Ronstan RF1033 Halyard Shackle 1/4" pin
€24.95
/
Sold out
Tax included.
Shipping calculated at checkout.
RF1033

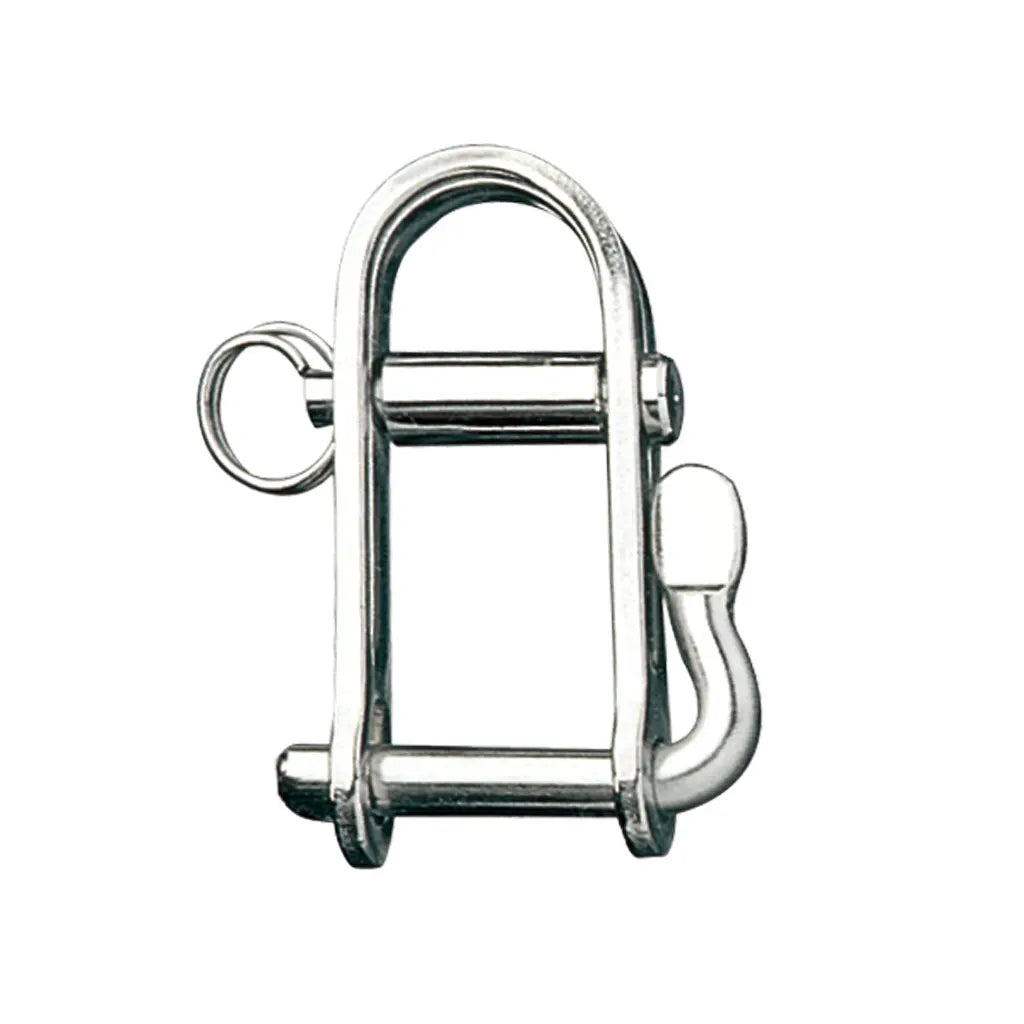

Halyard Shackle, 1/4"(6.4mm) Pin
Halyard shackles have a lever action for easy opening and closing, with a keyed pin for positive locking.
FEATURES
High strength to weight ratio
Specifications
| Weight (g) | 55 |
|---|---|
| P.L. B.L. (kg) | 1500 |
| U.D.L. B.L. (kg) | 2100 |
| Notes: | UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin. |
|---|

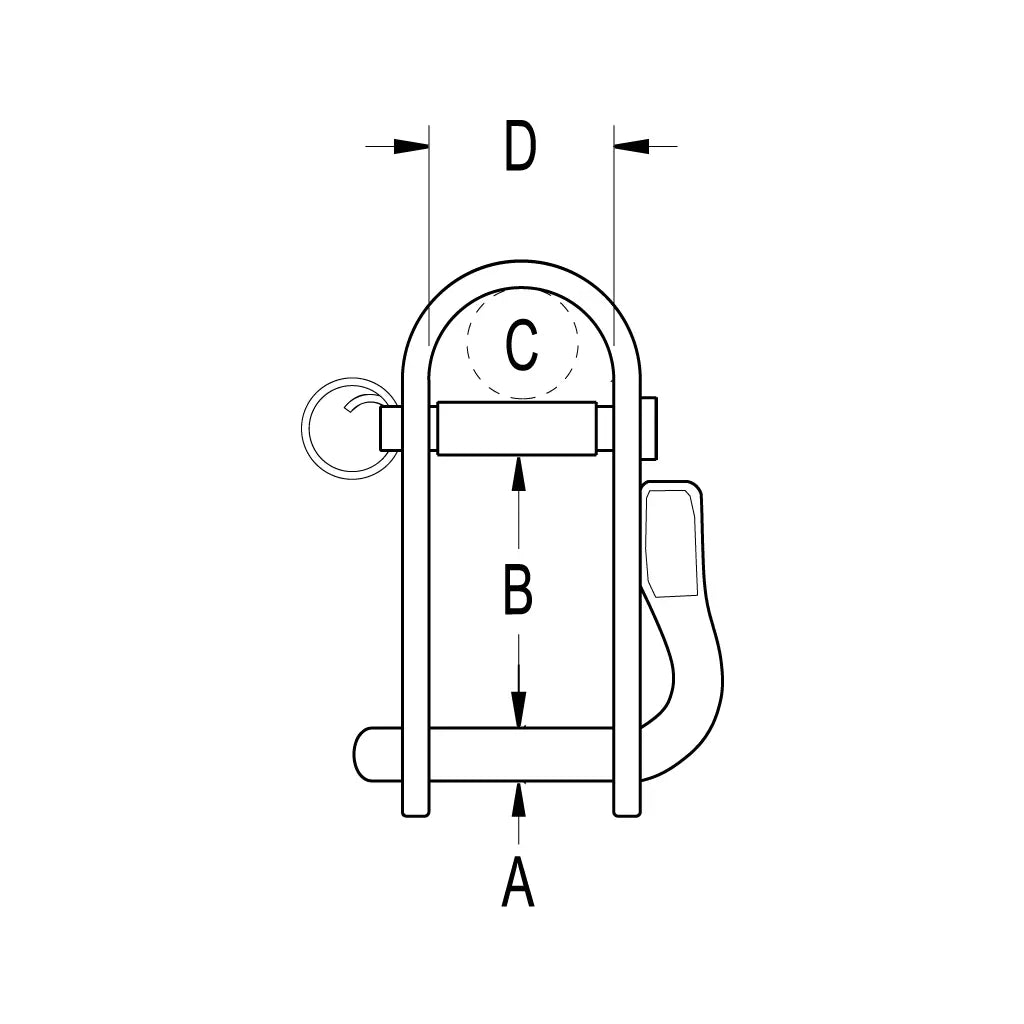

| A (mm) | 6.4 |
|---|---|
| B (mm) | 32 |
| C (mm) | 13 |
| D (mm) | 19 |
