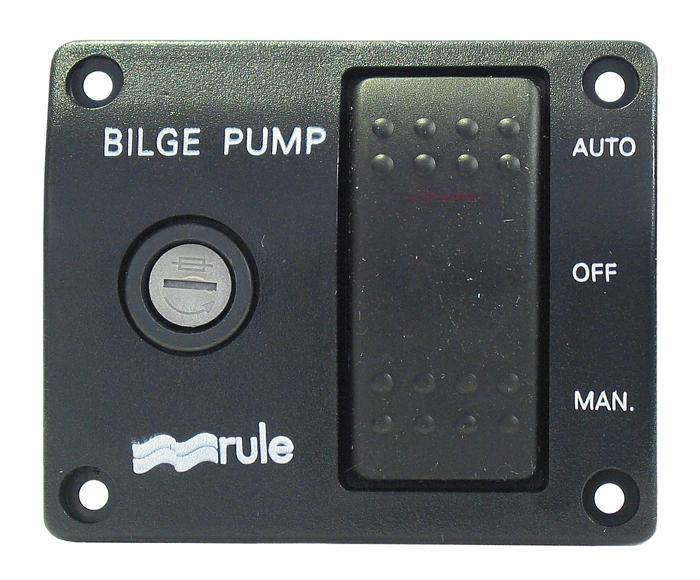

Rule 3-Way Rocker Switch with LED

The Rule Bilge Pump Rocker Switch 12v No 43 controls any automatic pump or pump equipped with an automatic float switch. This unit features a black plastic panel with 3 way postion: 'On, Manual and Auto'. It has a built-in fuse holder and an internally lighted rocker switch with 3 positions. Also comes with the Rule "fail-safe" spring return to "off" from the "manual" position.

Fuse holder does not include the fuse which needs to be matched with the pump in use (typically 4-15A depending on pump).

Features

• Use for automatically controlled bilge pumps
• Lit backlight for night use: red light indicates pump running.

• 3-Way switch with: 'Auto, Off and Man'
• Fail-safe switch prevents the pump from being left on when used manually.

Specifications

• Dimensions: 73mm wide, 60mm high.
• Maximum Current: 20(amps).
• Voltage: 12v systems only

• Requires 4 x 6mm screws not included (SOW1465)
