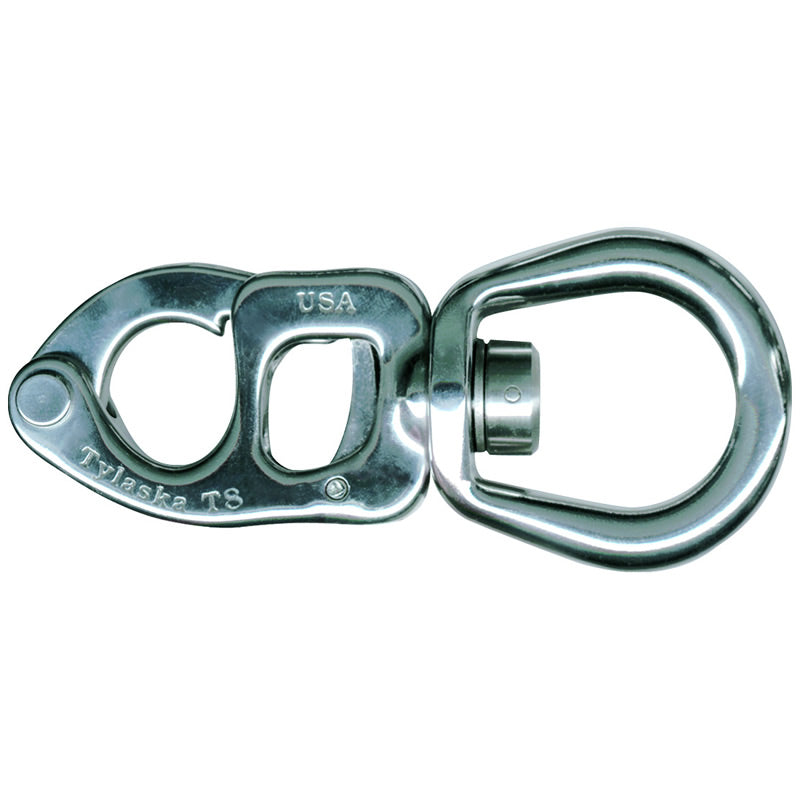

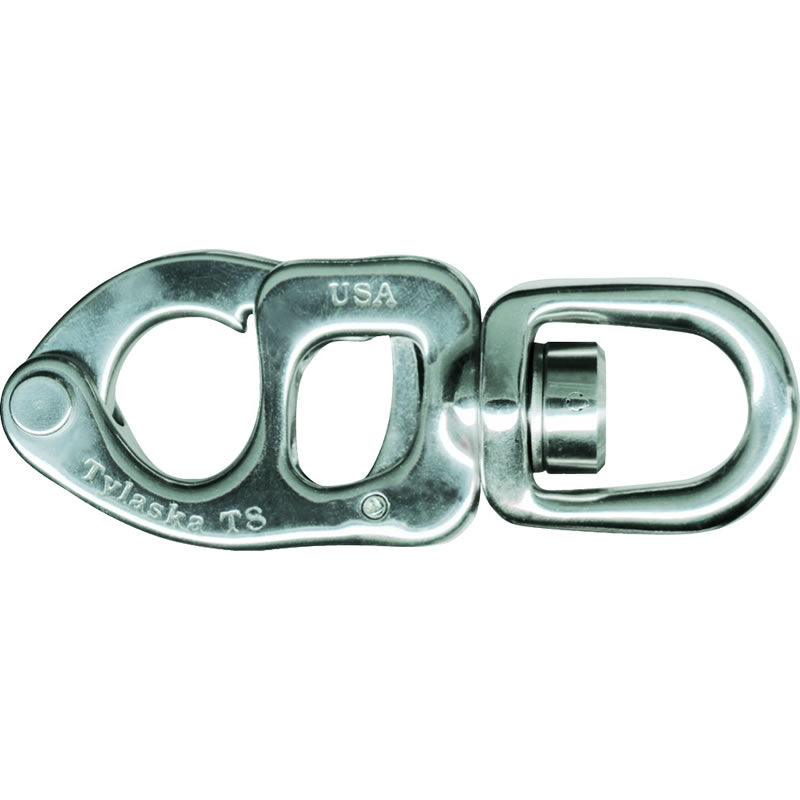

Tylaska T8 Snap Shackle, Standard and Large Bail
€249.95
/
Tax included.
Shipping calculated at checkout.
Tylaska T8 Snap Shackles are perfect for applications requiring immense strength and low weight. They have a breaking strength of 3,630kg and weighs only 99gr in the standard bail configuration. Ideal for the 24 to 36 foot sailboat.
T8 Specifications
| Product No. | Bail Type | A (in. [mm]) | B (in. [mm]) | C (in. [mm]) | D (in. [mm]) | E (in. [mm]) | F (in. [mm]) | G (in. [mm]) | Weight (oz [g]) | Working Load Limit (lb [kg]) | Breaking Strength (lb [kg]) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TY1008-S | Standard | .63 [16.0] | .58 [14.6] | 3.49 [88.5] | .28 [7.1] | .38 [9.7] | .54 [13.7] | N/A | 3.5 [99] | 4,000 [1,810] | 8,000 [3,630] |
| TY1008-L | Large | .63 [16.0] | .95 [24.1] | 3.93 [99.9] | .34 [8.6] | .38 [9.7] | .54 [13.7] | N/A | 4.5 [128] | 4,000 [1,810] | 8,000 [3,630] |
