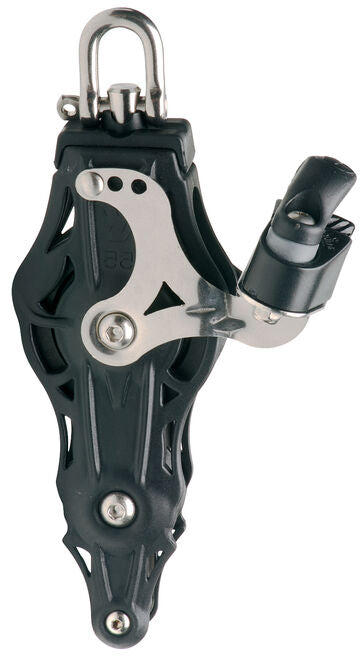

Wichard Fiddle Plain Bearing Block 70mm with Becket and Cams

€159.95
Tax included. Shipping calculated at checkout.

Description

Modern design
Withstand high loads
Ideal for static operations
The sheave runs on the stainless steel bush
Light cheeks protecting the sheave
Wide choice of fastenings thanks to the universal head

Applications

Mainsheet systems
Boom vangs
Downhaul systems



Specifications

  • Materials Grade 316L stainless steel head configuration
    Grade 316L stainless steel load straps
    POM cheeks
    Composite saddle for cam
    Composite sheave
    Terminal shackle : 316L stainless steel grade
  • Rope size Max 14 mm
  • Length (mm)236
  • Width (mm)120
  • Thickness (mm)80
  • Sheave diameter (mm)70
  • Shackle pin diameter (mm) 8
  • Working load (kg)480
  • Breaking load (kg)2700
  • Weight (g)748
