Proboat

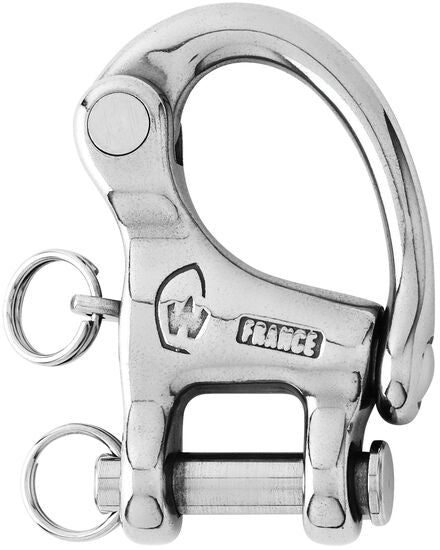

Wichard HR snap shackle with clevis pin

€77.95
Tax included. Shipping calculated at checkout.

HR Forged snap shackle (Grade 17.4 ph stainless steel) with clevis pin
The plunger pin is set captive into the hook and cannot become detached
Excellent working and breaking loads
Easy to open by pulling the plunger pin (possibility to attach a lanyard)

  • Materials: HR 17.4 PH stainless steel grade
  • Length (mm)52
  • Working load 960 kg
  • Breaking load (kg)2000
  • Weight (g) 54

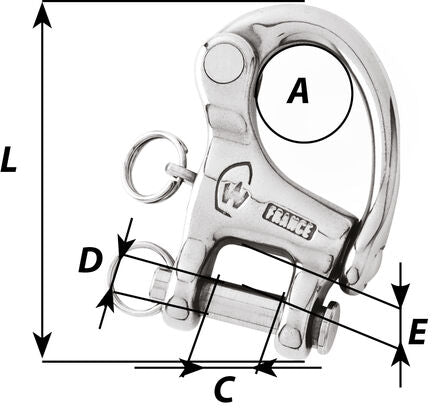

  • A (mm)16
  • B (mm) 8
  • C (mm)13
  • D diameter (mm) 6
  • E (mm) 5.1
